Another look at the Wing Sung 601 fountain pen.

~ rupertarzeian ~ 13 Comments

Here is another pen that I bought while on holiday in Italy. Except that this one was bought on ebay and has just arrived in the post, four weeks later.

“What were you thinking, ordering pens online while away on holiday?” you might ask. I had taken a new Wing Sung 601 demonstrator with me on the trip, and was delighted with it but still had the urge to have one in a colour seen on a friend’s Instagram post (@jonr1971). I think it is called Lake Blue although the names of the colour descriptions can be a bit puzzling.

Appearance and Design.

This is the Wing Sung model that looks very much like the well loved, vintage Parker 51, with a slip-on metal cap with arrow pocket clip and the distinctive hooded nib, but in stainless steel rather than gold.  I will not argue the rights or wrongs of this being a Chinese version of a classic Parker pen. It does not claim to be a Parker and is named Wing Sung (written in Chinese characters) 601 on the front of the cap band, with “Made in China” at the back. Unlike the Parker, it has six ink windows in the barrel, which are hidden when the pen is capped.

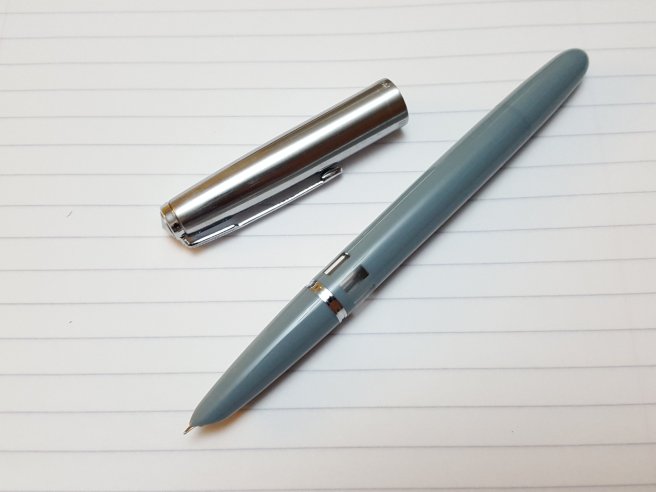

Wing Sung 601 vacumatic fountain pen.

Construction and Quality.

I was very impressed with my first, demonstrator version. The materials and finish all seemed commendable. I recall that the nib needed just a slight tweak to align the tines for smooth writing. On my new one, again the materials and finish all seemed to be to a good standard. There was no issue with the tines being uneven, but the nib was not quite symmetrical with the black plastic feed. As the nib is hooded, this is barely noticeable unless you look closely (which I did).  It does not seem to impair the ink flow, but it would be nice to remove the nib and line it up centered around the feed.

Under the blind cap, you have a metal plunger rod, to operate the vacumatic filling system. At the foot of this rod you have a black, hexagonal nut, which you may unscrew to remove the whole filler unit. The nut looks like black metal but I have heard that it is plastic and therefore gets chewed up and deformed if you use a metal wrench on it. Best to use plastic on plastic. I have not tried removing it yet.

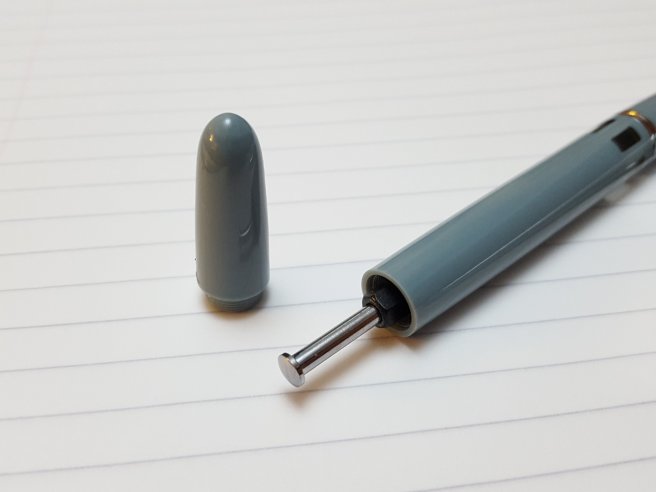

Blind cap unscrewed to reveal metal push-button plunger for the vacumatic filler unit.

Weight and Dimensions.

I would call this a medium-sized pen and fairly light. Closed, it measures about 138mm. Uncapped, it is about 127mm long, which many would find long enough to use unposted. However, I prefer the look, feel and weight of the pen with the metal cap posted, which increases the length to 147mm. I do not find it to be unbalanced as the cap posts deeply and securely and I then grip the pen a little higher up.

Uncapped the pen weighs around about 12.5 grams (including some ink in mine). The cap alone weighs 7.5 grams and so capped, or posted the total is 20 grams, which is still on the light side.

Nib and Performance.

The nib is a Fine, or possibly Extra Fine. I could not see any marking on the visible part of the nib. Being so small, and with only about 2mm of nib protruding under the shell, it is firm and does not provide any significant line variation. Like a rollerball, it does not give much character to your writing. But on both of mine, the ink flow has been good, giving sufficient lubrication to the nib to allow for effortless writing. Being a Fine nib, it does not have the smoothness of a generously tipped broad nib but it is smooth and also has sufficient “tooth” to enable the pen to cope with ease on smooth papers without any skipping. You might find that you need to rotate the pen a little to find the “sweet spot” and with a hooded nib, it is not so easy to see how your pen is rotated, when you are writing. It helps to post the cap with the arrow clip in line with the nib to see the alignment of nib to paper in the writing position and make adjustments as necessary.

I did test my first nib with Conway Stewart Tavy, blue-black ink by Diamine and was pleased to find that it wrote well in all directions, never skipping and needing no pressure. I had the same success with Waterman Mysterious Blue in my latest pen.

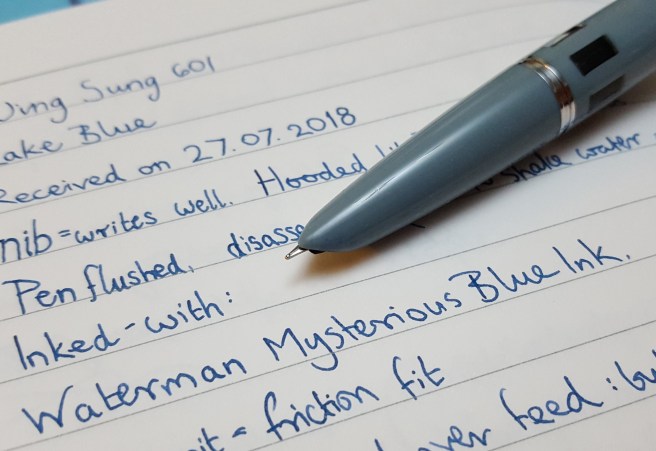

No skips or hard starts. Waterman Mysterious Blue on smooth Paperchase note book paper.

Filling System and Maintenance.

This is a vacumatic filler; you immerse the nib in ink, press and release the spring-loaded button a few times, expelling air and allowing ink to be drawn into the reservoir. In the demonstrator version you can observe this fascinating process, with the ink level rising a little higher in the reservoir with each press of the button.  “I pressed down down down and the ink went higher” as Johnny Cash might have sung. In the non-demonstrators, it is not so spectacular but you can easily check that you have a good fill using the ink windows.

As for maintenance, the pen is not easy to flush. I experimented first with water and found that pressing the button repeatedly does not expel all the water from the pen. If this were ink, and you were changing colours, you could contaminate a bottle of ink with the ink residue from the pen. So, to clean the pen you therefore need to unscrew the shell, pull out the nib and ink collector unit (which is friction fit) from the barrel and then rinse out any residue.

Collector, pulled from the barrel. Before you push it back in, you need to mark on the barrel, where the protruding lip of the shell will finish up once screwed back on, and then position the collector so that the nib is in line with this point.

I have not yet found a way to separate the metal nib from the collector unit. I tried pulling it out but it would not budge and I was wary of distorting either the nib or the fins on the collector and so suspended my efforts. The little nib is just too tiny to get a hold of, even with “grippy material”.

When pushing  the collector back into the barrel, it is necessary to line it up so that, when the shell is screwed back on fully, the protruding lip of the shell will end up  precisely in line with the nib. This can be done by marking on the barrel, the position where the nib needs to be, or just by holding the barrel horizontal in one hand imagining that the top is the 12 o’clock position. You soon find out if you have got it wrong;  if the nib is not in the right place, look at which direction it needs to be moved and by roughly what distance. Repeat as necessary.

A little silicone grease on the plastic threads is a good idea. One of my 601’s actually came with a little container of grease and so you are encouraged to disassemble and maintain your pen.

Cost and Value.

These can be found new on ebay for prices of around £10, and so come in well under the price of a Lamy Safari, currently about £17.00 here in the UK. That is excellent value for a vacumatic filler fountain pen.

Conclusion.

I enjoyed my first 601 sufficiently to want to buy another. The familiar design is obviously well-known and loved. It is great that these are now available with a Vacumatic filling system. The fine nib combined with the large ink capacity, mean that you can write for ages on one fill. Whether you chose the demonstrator or ink windows version you can see when you are getting low on ink and top up accordingly.

It is probably best not to change ink colours too frequently unless you are prepared to disassemble the pen for cleaning first. Another option is to decant some ink into a receptacle with a pipette or syringe and to fill from there, rather than from a bottle to avoid the risk of contaminating the rest of the bottle.

As a smart, classic and reliable pen, light enough to carry in a shirt pocket, I can see how it can become the daily writer of choice. This is a pen that you will want to show people.

The Wing Sung 601 would grace any table. Seen here on a train.

Travelling with ink: pen shopping in Lake Garda.

~ rupertarzeian ~ 10 Comments

Once again it has been holiday time and an opportunity to visit a beautiful part of the world, that is northern Italy. My wife and I and mother-in-law were to spend a week at Garda Town, on the eastern side of Lake Garda (or Lago di Garda).

My forward planning had consisted of chosing what pens to bring for journaling and deciding upon a Wing Sung 601 (clear demonstrator, vacumatic filler), plus a Kaweco Dia 2 and a Perkeo. Rather than bring bottled ink this time I brought some cartridges for the Kawecos. I also packed a WH Smith exercise book. However, at the last minute, at Stanstead airport, I spotted a soft cover Leuchtturm plain paper journal with elastic loop closure. I stuffed it in my bag and took to the skies feeling like an Ernest Hemingway.

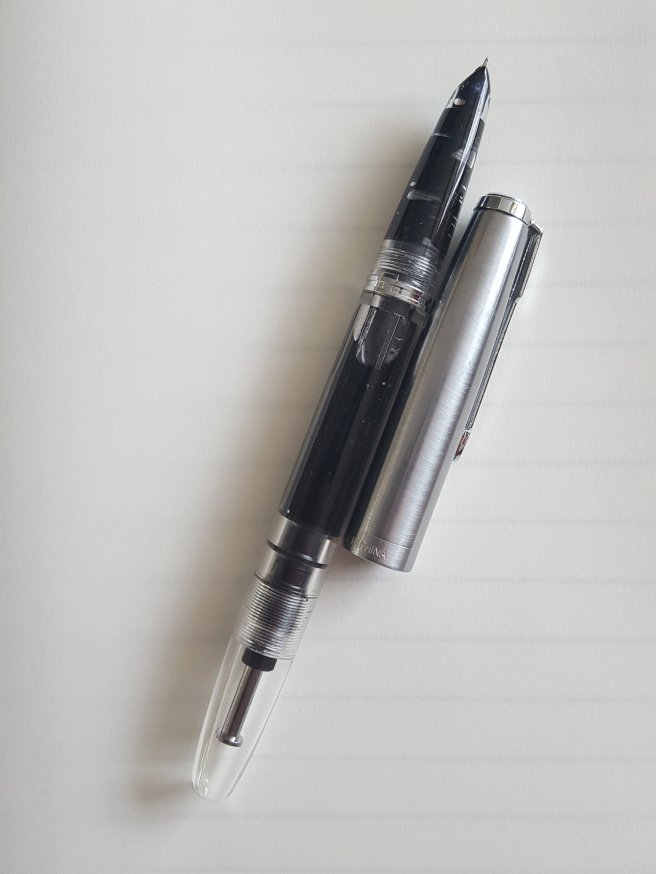

Wing Sung 601, vac filler.

I had also googled “pen shop Verona” and jotted down the name of a shop on the via Mazzini called Manella, to check out when we got there.

Lake Garda, set among the spectacular backdrop of the Dolomites, has a perimeter of 158km (98 miles). Early in our holiday, we joined a coach tour to go all the way round, visiting four of the lakeside towns, Sirmione, Limone, Riva and Malcesine.

Sirmione is located at the tip of a narrow peninsula, on the southern banks of the lake, and famed for its thermal baths, a medieval castle and the remains of a Roman villa. We arrived via a motor launch for the short journey to the tip of the peninsula and cruised into the castle, which was very cool. Busy with tourists on this hot June day, I did stumble across a stationery shop with some attractive fountain pens in the window and went to investigate. I did not recognise any of the brands on display but was drawn to a red resin pen with shiny chrome lattice work around the cap, sold with a converter and a bottle of black ink and one standard cartridge. The brand was La Kaligrafica and at under 30 euros and with a nice steel nib it seemed like a good buy.

Later, inking the pen up with the supplied cartridge, I was quite content with the nib (the ubiquitous “Iridium point, Germany”) but found that the pen was a little short to use unposted. It was clearly designed to have the cap posted, where it sits flush with the barrel. But the problems were (a) the metal furniture on the cap makes the pen a bit top heavy and (b) the cap does not grip securely on the barrel and very easily works loose as you write, which is very irritating. There is a risk of it falling onto a hard floor and breaking or disappearing over a balcony. I tried wedging a scrap of paper under the cap but this did not seem to help. I think this pen is destined for someone with smaller hands who will not need to post the cap.

La Kaligrafica, Italian cartridge-converter fountain pen.

We travelled up the west side of the lake by coach, passing through many tunnels, built in the 1930s by Mussolini. Lunch was at another pretty town, Limone, before taking a ferry up to Riva on the northern bank, from where there were marvellous views down the lake. Having some free time to explore Riva, I found another stationery shop, selling leather bound journals, ornate glass handled dip pens (with steel nibs) for calligraphy or for display and a few inexpensive Italian fountain pens geared for the tourist trade at between 20 to 30 euros. I was able to resist these.

The final visit on the lake tour was Malcesine on the eastern side, with another castle and also boasting a cable car to the top of Mount Baldo. The cable car gondola is round and actually revolves very slowly as it ascends. (We returned to do the cable car trip another day).

The lake tour was a very good start to our holiday, giving a good introduction and a taster, to plan trips by ferry during the rest of the week.

DSCN2291
Typical scene on Lake Garda

Later in the week we took a bus to Verona which is only an hour away. The bus terminates in the centre of the city right next to the impressive arena, a Roman amphitheatre, still used as a venue for opera. The scenery for a performance of Aida was laid out in the square.

We walked down the via Mazzini, the pedestrian shopping street which takes you from the arena to the piazza delle Erbe, a beautiful square with a bustling market.

I found the Manella pen shop, under a Pelikan sign! Unfortunately it was closed so I was resigned to missing it this time. I had to content myself with pressing my nose up to the windows and taking a few photos (marred by reflections from the busy street) of the displays of Pelikans, Auroras, Delta, Montegrappa and other delights.

DSCN2594
Manella, fountain pen shop, Via Mazzini 5, Verona.

However, after spending some time exploring Verona, including a visit to the casa di Giuletta (the “house” of Shakespeare’s Juliet) and the impressive Cathedral, we passed the pen shop again and this time it was open! The very cordial proprietor told me that this shop had been here since 1940 and run by his father before him. On telling him that I was keen on fountain pens he kept getting things out to show me,such as a Montegrappa Fortuna although I had to tell him that I had one already.

I was interested to try an Aurora, not having owned one and he showed me the Aurora Ipsilon Deluxe, in red resin with a gold nib. However, he had some more colours and models in his other, larger shop, literally just around the corner and together we walked around to look at some more pens.

There he also had an Aurora Ipsilon Lacca, the metal lacquer version, in a new dark blue and black finish and also with a gold nib, which looked to be rhodium plated with matching furniture. This I chose as my souvenir from Verona. Oh, and I spotted a display of “Pelikano Up” pens and one of those went home with me as well.

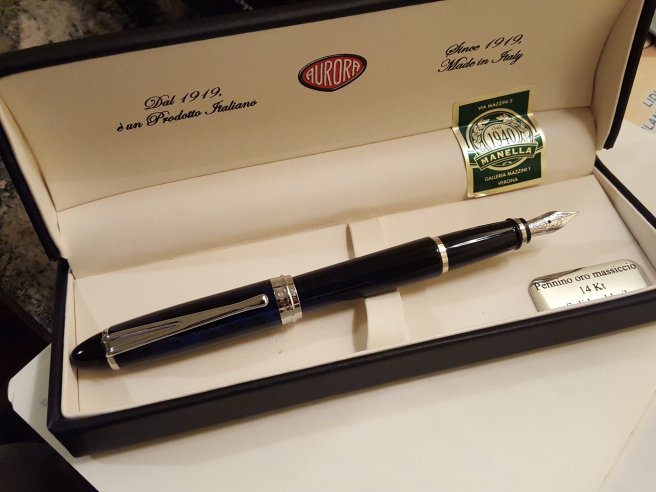

Aurora Ipsilon Lacca.

Back in London, I filled the Aurora, rather unimaginatively with Aurora blue. It is a smallish pen but weighs a solid 31.5g. It is short when uncapped, at around 118mm, but the cap posts well with a secure click.

My Fine nib version wrote well. But the nib is small and firm without much give. I was also a bit troubled by what looked like rows of tiny mysterious scratches right across the mid part of the nib, from edge to edge, although only visible with a loupe. Also the nib was not precisely centred over the feed and I have not yet figured out how to remove the nib and line it up more symmetrically. However neither of these issues affects writing performance.

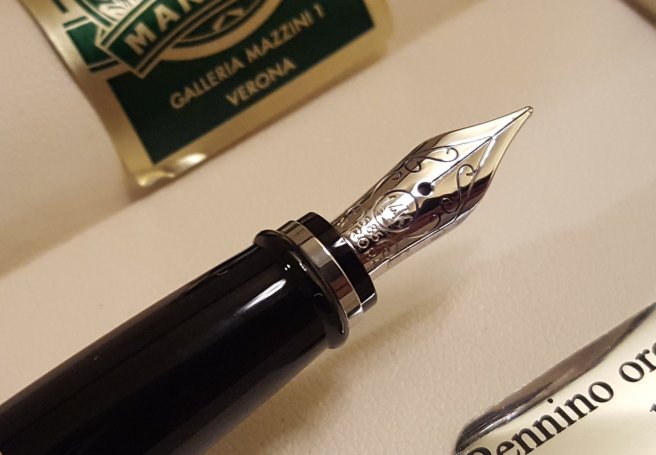

Detail of the Fine, 14k gold nib, Aurora Ipsilon Lacca.

I must confess, that I did find the pen a bit bland, particularly matched with royal blue ink. I then flushed it and refilled it with Monteverde Napa Burgundy, which has injected some more life into it. I think it is a decent pen but on reflection, I enjoyed the buying experience more than the pen itself. Perhaps it is just that I am “penned out” at the moment and spoilt from a surfeit of other very satisfying aquisitions in recent weeks. I had been happier with the Montegrappa Fortuna and Pineider Avatar pens bought earlier this year, two Italian pens which both have steel nibs.

Finally, the modest Wing Sung 601 served me well on the trip, as did the Leuchtturm journal. After about 35 pages the Wing Sung (with its fine nib) still had half a fill of ink remaining and I had no need of my two Kawecos or spare cartridges which came to Italy for the ride.

DSCN2341
View of Lake Garda, from Riva on the north bank.

Some early thoughts on the Pelikan M120 special edition, green and black fountain pen.

~ rupertarzeian ~ 12 Comments

Within the last few weeks, I have been on the receiving end of three wonderful, unexpected, unconnected and very generous gifts.

First, a Methodist minister retiring from her post at a city church in London, and moving from the manse to smaller accommodation, offered me an old camera that she no longer used. This turned out to be a Nikon F, the very first of Nikon’s line of single lens reflex cameras introduced in 1959. Well travelled but well looked after, the camera was in good working order and I have enjoyed taking it out and about, remembering the way that we used to take photographs: winding on, setting speed, aperture and focus and then hearing the shutter release and the mirror returning. Before the fountain pen hobby grew and took over, I had built up an accumulation of classic cameras (particularly Voigtlander and Zeiss) but had never owned a Nikon 35mm film camera. I am now thrilled to have this classic model.

Then, a reader of my blog, whom I met up with for the first time in London recently, kindly passed on to me a bunch of his fabulous pens as mentioned in my post Inky Pursuits: a recent round-up. I am greatly enjoying the Pilot Custom 74 and Custom Heritage 92, the nibs and comfort of which give a writing experience amongst the best I have ever known.

And then on returning from holiday recently, I had a parcel waiting for collection. This was the size of a small pillow, and contained a very well wrapped, new and unused Pelikan M120, in classic green and black, complete with presentation gift box, a bottle of Pelikan 4001 royal blue ink, and the guarantee and guide to the Pelikan range.

This generous gift was from another reader of my blog and a fellow blogger, but from another country and whom I have never met. I am most grateful but also humbled that people can be so generous even to a total stranger. Events like this make the world seem a friendlier place and help to redress the balance when so much world news is so troubling. Indeed, in the last few years, I have found the online fountain pen community, to be a wonderful bunch, from all over the world and from all walks of life, united by a common passion for fountain pens, inks and stationery.

Returning to work after a week away, (into a tumultuous week including World Cup football, Wimbledon tennis, and President Trump’s visit to the UK) it has taken me a little while to adjust and get back into my routine. However, I have now had a closer look at this pen and have been using it with the lovely Pelikan Edelstein Smoky Quartz (which I did not pay for either, as it came from last year’s Pelikan Hub).

I understand that this model, in green and black, is a 2016 re-issue of a classic Pelikan from 1955 but with a few improvements.

Appearance and design

This is a vintagey-looking cigar shaped pen, with a green body and black grip section and piston knob and rounded ends. There is a good sized ink window with a green tint. The black cap screws on securely, needing only half a rotation. The gold plated pocket clip features the Pelikan bill. A gold plated cap band reads “PELIKAN GERMANY”. But one feature that is not so obvious is the logo of pelikan and chick on the finial, very subtle in black with no colouring so that you would hardly notice it.

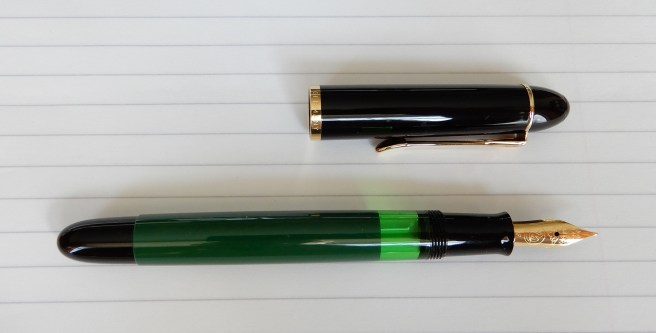

Pelikan M120, special edition (2016) in green and black.

Construction and quality

Being a resin pen it is lightweight but looks and feels to be of good quality, not plasticky. I cannot find any fault in the construction.

Weight and dimensions

With ink, the pen weighs only 16g capped or posted, or 10g for the body only, and 6g for the cap. Capped, it measures 130mm (not too long for a shirt pocket), whilst open it is 120mm (a bit short; I prefer 130mm plus, to use un-posted); with cap posted it is a very comfortable 155mm and this is how I like to use it. The cap grips quite deeply and securely on the back of the pen without upsetting balance. Also the clip will then stop the pen from rolling if put down on a sloping surface.

Nib and performance

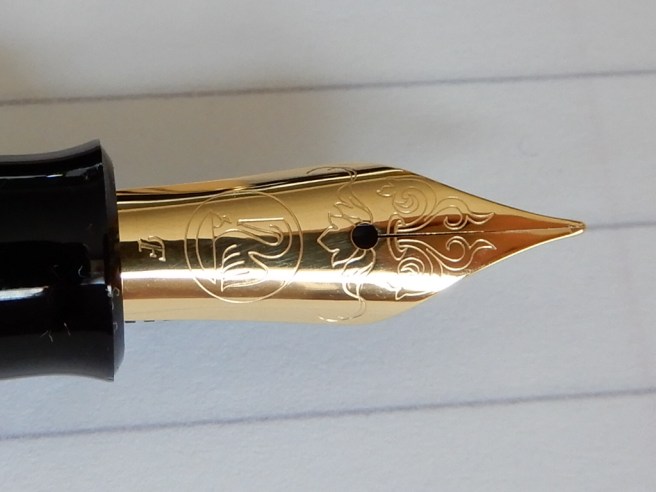

Ah! Thanks for asking! This is a steel nib, (mine is a Fine) with gold plating to match the cap furniture (or vice versa). A special feature of the pen is that the scroll work on the nib is based upon a Pelikan price-list from 1889 and looks very attractive under a loupe (although, like the logo on the finial, it is not noticeable in ordinary use but it is nice just to know it is there). The nib wrote beautifully out of the box and has a pleasant bit of springiness or softness to it (although not a flex nib). It has a very pleasant touch on the paper, a little feedback but no scratchiness. I would say that the line is more towards the Medium side, than a true Fine and is perfect for me. Also, the nib and feed unit can be easily unscrewed for rinsing or swapping with any nib from the M200 or M400 pens, should you wish to do so.

RSCN2776
Curlicues borrowed from an 1889 Pelikan price list.

Filling system and maintenance

This is a piston filler and is very smooth and effective and holds a good supply of ink although I have not measured it. For cleaning I would just fill and empty the pen a few times in clean water until all traces of ink are gone from the water. It is good to be able to unscrew the nib and feed units to wash them or soak overnight if need be, if changing ink colours. I am not sure whether or how you can remove the piston mechanism but it should be good for many years yet.

Cost and value

This pen, in green and black, was a special edition to be made for a limited period. I remember seeing them for sale on Cult Pens at the time. Currently there is a similar model but in blue with blue cap and blue ink window for sale at £128.00 and I think the green and black model used to be a similar price.

This puts it somewhat higher than the regular M200 models which are currently offered in the £70.00’s and £80.00’s on Cult Pens, which is lower than they used to be.

Is it worth it? This is a tough question. Several reviewers concluded that it was a great pen but let down only by being rather over-priced for what it is, when based on a school pen from the 1950’s. Personally, I would recommend the pen if you like the nostalgic style combined with modern Pelikan materials and reliability.

Certainly it is a pretty pen, with vintage looks from a bygone era, very well made and if like my other modern Pelikans, perfectly reliable and always ready. And it makes a good companion for my Nikon F.

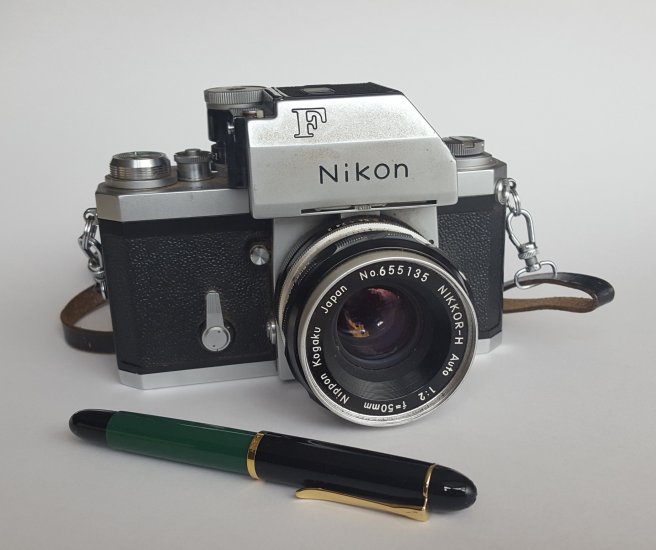

Nikon F with Pelikan M120.
